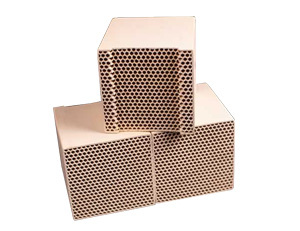

Non-precious metal honeycomb ceramic catalysts

The transition metal catalyst is based on nanosilver as the main active component, and the stability of nanosilver is improved by introducing Cu and Mn components into the carrier. This catalyst is not suitable for high temperature, and it has a very high activity for alcohol ether ester organic waste gas.

Commodity name： Non-precious metal honeycomb ceramic catalysts

Classification:

Product

E-mail:

newsceneryrui@gmail.com

Online consultation

Return to List

Description

Product Introduction

The transition metal catalyst is made of nano-silver as the main active component, and the stability of nano-silver is improved by introducing Cu and Mn components into the carrier. This catalyst is not suitable for high temperature, and it has very high activity for organic waste gas of alcohols, ethers and esters.

Technical Parameters

Carrier	Cordierite
Specification	100mm100mm50mm(can be customized)
Wall thickness	≤0.2mm
Pressure Drop	≤1000Pa/m(stacking height)
Pressure Resistance	A≥10Mpa,B≥2Mpa,
Specific heat capacity	900-1000J/Kg.K
Water absorption	≤25%
Pore density	200 mesh
Active Component	Ag、Mn、Cu
Bulk density	550kg/m³
Effective cross-sectional area	>65%
Coefficient of thermal expansion	4.5-5.4×10-6/K
Impact temperature	500℃
Working temperature	260~450℃
Conversion efficiency	98% or more
Concentration range	1500mg/m³~4000mg/m³
Airspeed	10000~15000h-1
Application industry	Spraying, printing, chemical industry
Service life	Above 8600h
Applicable VOCs type	Non-hydrocarbon VOCs

Exhaust Gas Conversion Rate Temperature Curve
