Zeolite Module

沸石转轮分为盘式和筒式，两者的吸附床层均由特定形状的沸石模块组成。沸石模块以改性沸石为原料，以陶瓷纤维为骨架，加工成方形蜂窝块，是一款高性能吸附产品，能够有效吸附有机废气。
  • Commodity name： Zeolite Module

Classification:

Product

E-mail:

newsceneryrui@gmail.com

Online consultation
Return to List
  • Description

  • Products

    The zeolite rotor is divided into disk type and cylinder type, both of which have adsorption beds composed of zeolite modules of specific shapes. The zeolite module is made of modified zeolite as raw material and ceramic fiber as skeleton, processed into square honeycomb blocks, which is a high-performance adsorption product that can effectively adsorb organic waste gas. It has high safety performance, is completely non-flammable and has high hydrophobicity and water resistance. High adsorption efficiency. Adsorption regeneration is more complete, can realize the recycling of adsorbent, reduce the cost of treatment, reduce the generation of waste residue.

    xq xq

    Product Parameters

    Corrugated Height 1.6mm
    Corrugated Width 3.2mm
    Module Size 280mm*250mm*700mm(可定制)
    Module Thickness 230mm/280mm/400mm(可定制)
    Module Shell 304不锈钢
    Adsorption temperature ≤40℃
    Adsorption humidity ≤75%
    Zeolite content 40%-70%
    Adsorption wind speed 1.0-3.5m/s
    Desorption air velocity 1.0-5.0m/s(脱附风速尽量选用大于吸附风速)
    Desorption temperature 180-220℃
    Purification efficiency ≥90%最高可达98%以上

    数据分析：废气成分：异丙醇：正丁醇：乙酸乙酯：乙酸丁酯：二甲苯=20:20:20:20:70

    块体编号 风速(m/s) 风量(m³/h) 风阻(Pa) 总浓度(mg/m3) 废气类型 入口条件
    NS-06-03 3.03 85.6278 600 380 异丙醇：正丁醇：乙酸
    乙酯：乙酸丁酯：二甲
    苯=20:20:20:20:70    		 温度/℃ 湿度/%

    块体重量/Kg 块体高度/mm 块体直径/mm 块体体积/m³ 块体密度/Kg/m³
    0.76 400 100 0.00314 242.04

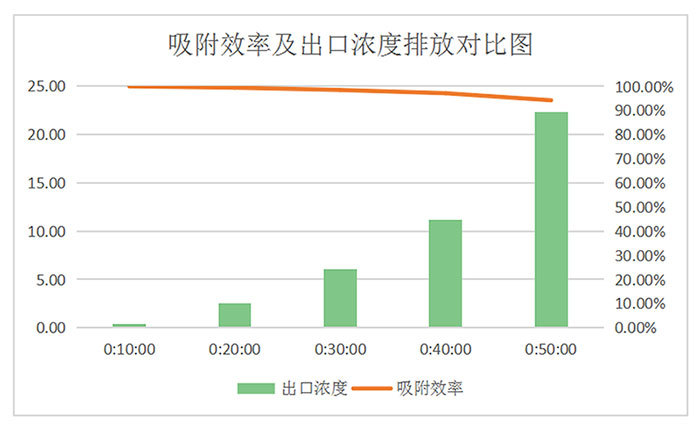

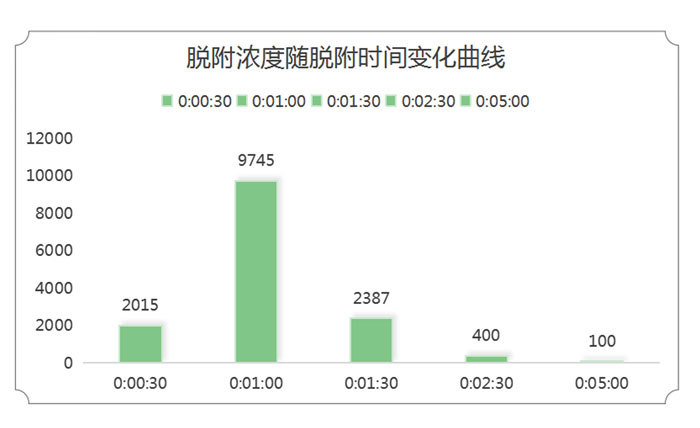

    吸附时间 (min) 进口浓度 (mg/m3) 出口浓度 (mg/m3) 吸附效率 脱附时间 (min) 脱附浓度 (mg/m3) 测试日期
    0:10:00 380.00 0.40 99.89% 0:00:30 2015
    0:20:00 380.00 2.50 99.34% 0:01:00 9745
    0:30:00 380.00 6.10 98.39% 0:01:30 2387 脱附温度
    0:40:00 380.00 11.20 97.05% 0:02:30 400 200℃
    0:50:00 380.00 22.30 94.13% 0:05:00 100
    总吸附时间 50min 总脱附时间 5min
